Design Services
Design Analysis (FEA)
Practical design analysis for stress, stiffness, deflection, load paths, and improvement decisions before production.
Project Focus
Engineering checks that help reduce risk before cutting, bending, or fabricating parts.
Stress and Deflection Review
Component Validation
Overview
Built For Real Project Decisions
Before a part goes into production, the design should be checked for obvious weak zones, excessive deflection, unsupported load paths, and geometry that may fail under use. We provide practical analysis support to guide better design decisions for brackets, frames, fixtures, panels, and mechanical components.
Analysis assumptions and load-case summary
Stress, displacement, and factor-of-safety style references where applicable
Design risk notes in plain engineering language
Recommended geometry changes for improved performance
Updated CAD direction when design changes are required
Capabilities
What We Handle
- Basic FEA setup for stress and deflection review
- Load case planning with material and support assumptions
- Geometry simplification for cleaner analysis results
- Identification of high-stress and high-deflection zones
- Design improvement suggestions for ribs, thickness, gussets, and supports
- Clear explanation of assumptions, risks, and recommended changes
Applications
Best Fit Projects
- Brackets, frames, machine supports, and fixture parts
- Sheet metal cabinets, covers, panels, and load-bearing forms
- Product parts that need stiffness or weight improvement
- Prototype parts before production investment
- Design comparison between multiple geometry options
- Customer review before fabrication or vendor release
Process
How The Work Moves Forward
The workflow is structured to keep scope, files, manufacturing direction, and approvals clear from the first discussion through final delivery.
Define the design goal, expected loads, material, supports, and use conditions.
Prepare the model by simplifying non-critical features for analysis.
Run analysis checks and review stress, deflection, and load path behavior.
Identify risks and propose practical geometry or material improvements.
Document the conclusion and update the design direction if needed.
Project References
Clear Visual Examples
Each image is shown in a dedicated viewing window so visitors can inspect the type of CAD model, analysis view, drawing, prototype, or fabrication result connected to this service.

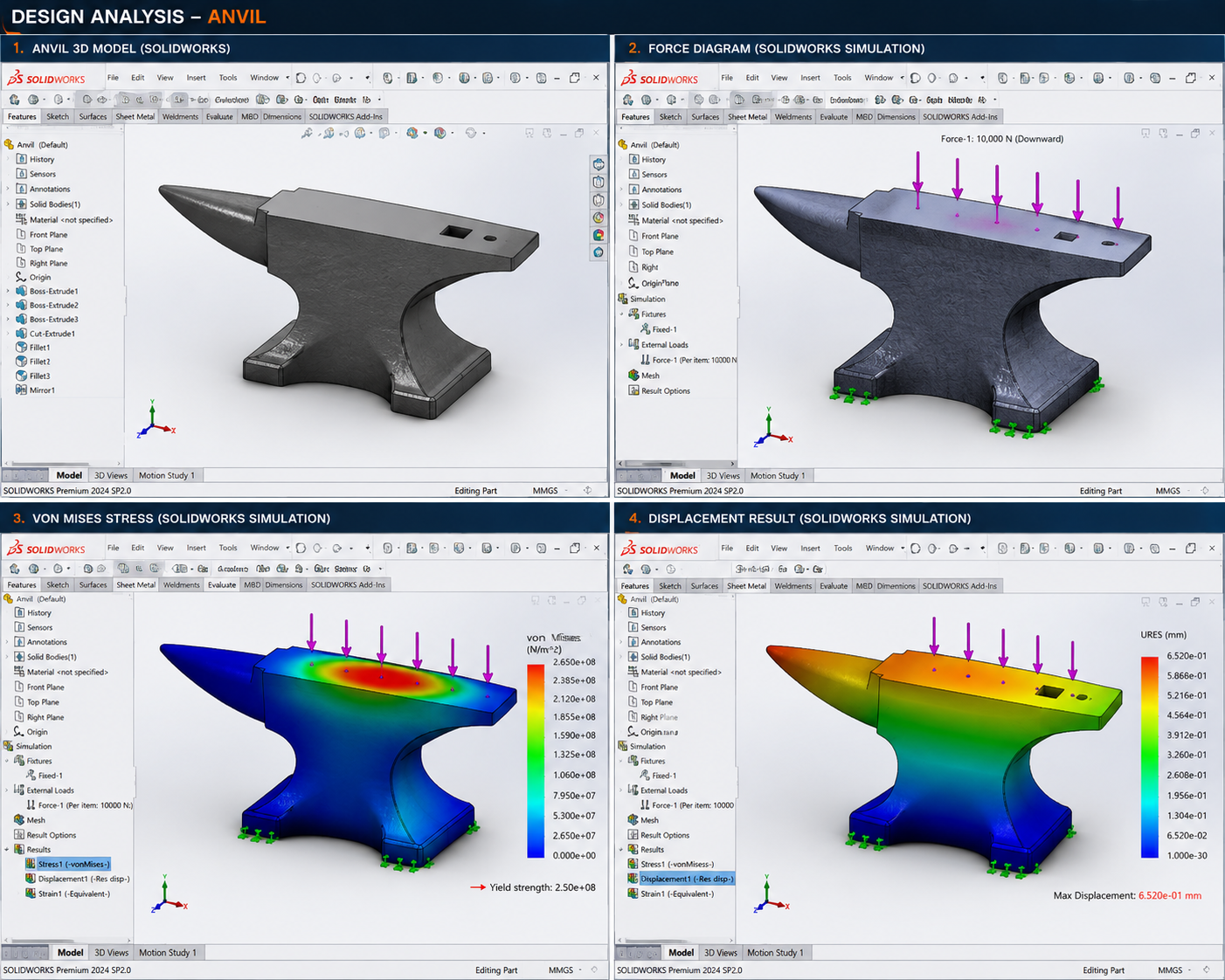

Stress and Deflection Review
Analysis results help visualize where the design carries load and where geometry may need reinforcement or redesign.

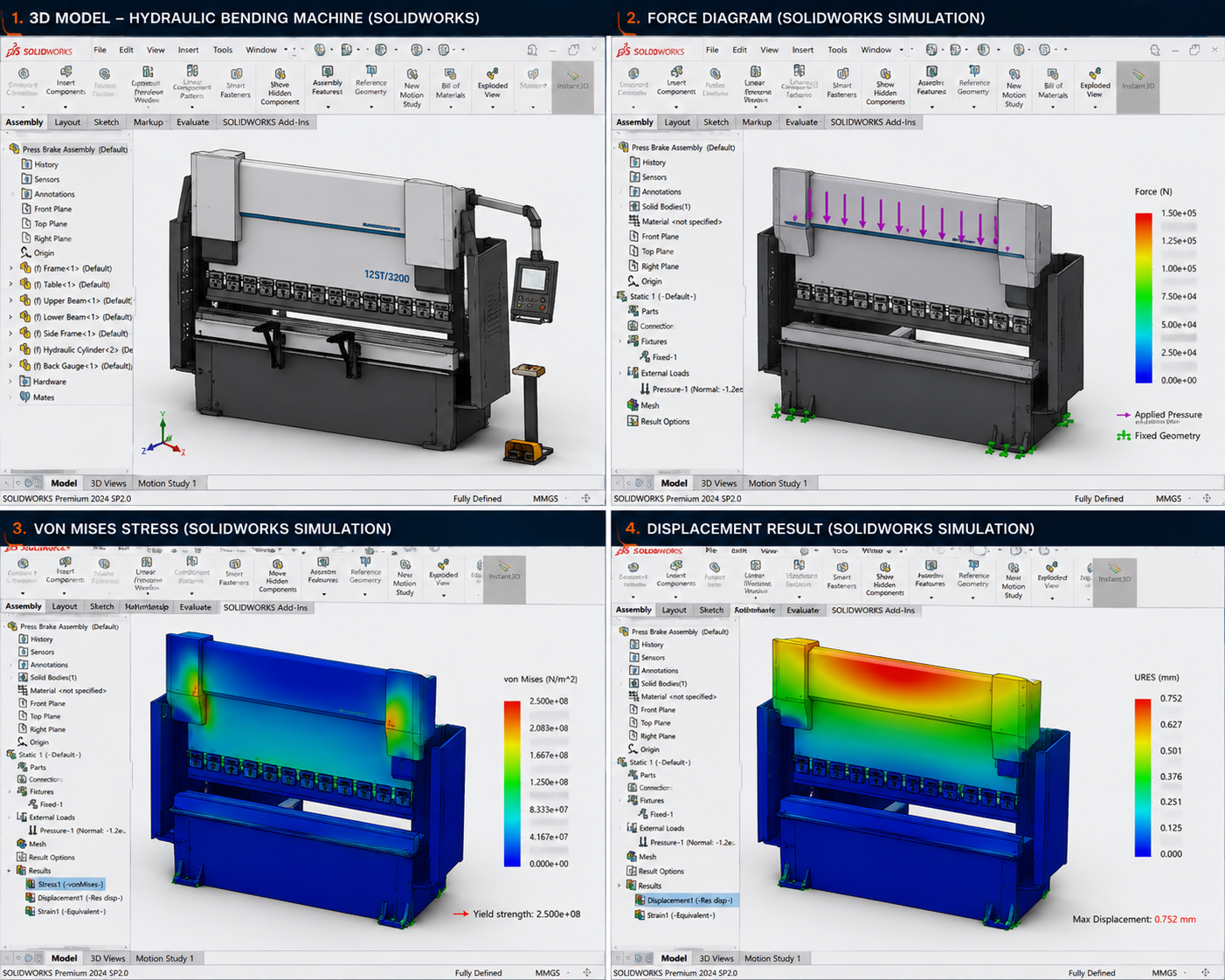

Component Validation
Brackets, plates, supports, and fabricated components can be reviewed before production to reduce avoidable failures.
Improved Structures
Thickness, bends, ribs, gussets, and mounting points can be refined for better stiffness and manufacturing practicality.
