Design Services
3D Print Design
Print-ready part design for prototypes, jigs, fixtures, samples, and functional 3D printed components.
Project Focus
Geometry designed for printability, strength, fit, and practical use.
Print-Ready Geometry
Prototype Fit Checks
Overview
Built For Real Project Decisions
3D printed parts need different design decisions than machined or sheet metal parts. We design and modify parts with wall thickness, support direction, tolerance, orientation, strength, and post-processing in mind so the printed result is useful, repeatable, and ready for testing.
STL files prepared for slicing and printing
Editable CAD model for future revisions
STEP files for vendor sharing or downstream manufacturing
Print orientation and design notes when useful
Revised files after sample testing or dimensional feedback
Capabilities
What We Handle
- 3D print-ready CAD modeling and STL preparation
- Design for wall thickness, ribs, bosses, holes, and snap features
- Orientation and support strategy recommendations
- Jigs, fixtures, holders, covers, and functional prototype parts
- Conversion of rough ideas or drawings into printable geometry
- Iteration after print testing and fitment feedback
Applications
Best Fit Projects
- Prototype parts and product samples
- Jigs, gauges, fixtures, holders, and assembly aids
- Form-fit trials before machining or fabrication
- Small functional parts and custom accessories
- Enclosure mockups and ergonomic checks
- Design validation before tooling or production
Process
How The Work Moves Forward
The workflow is structured to keep scope, files, manufacturing direction, and approvals clear from the first discussion through final delivery.
Understand the part purpose, printer type, material preference, and strength expectations.
Design or modify the part for printability, wall thickness, and support control.
Prepare STL and CAD exports with practical orientation suggestions.
Review the printed part for fit, finish, function, and dimensional issues.
Revise the design for the next sample or production-ready process.
Project References
Clear Visual Examples
Each image is shown in a dedicated viewing window so visitors can inspect the type of CAD model, analysis view, drawing, prototype, or fabrication result connected to this service.

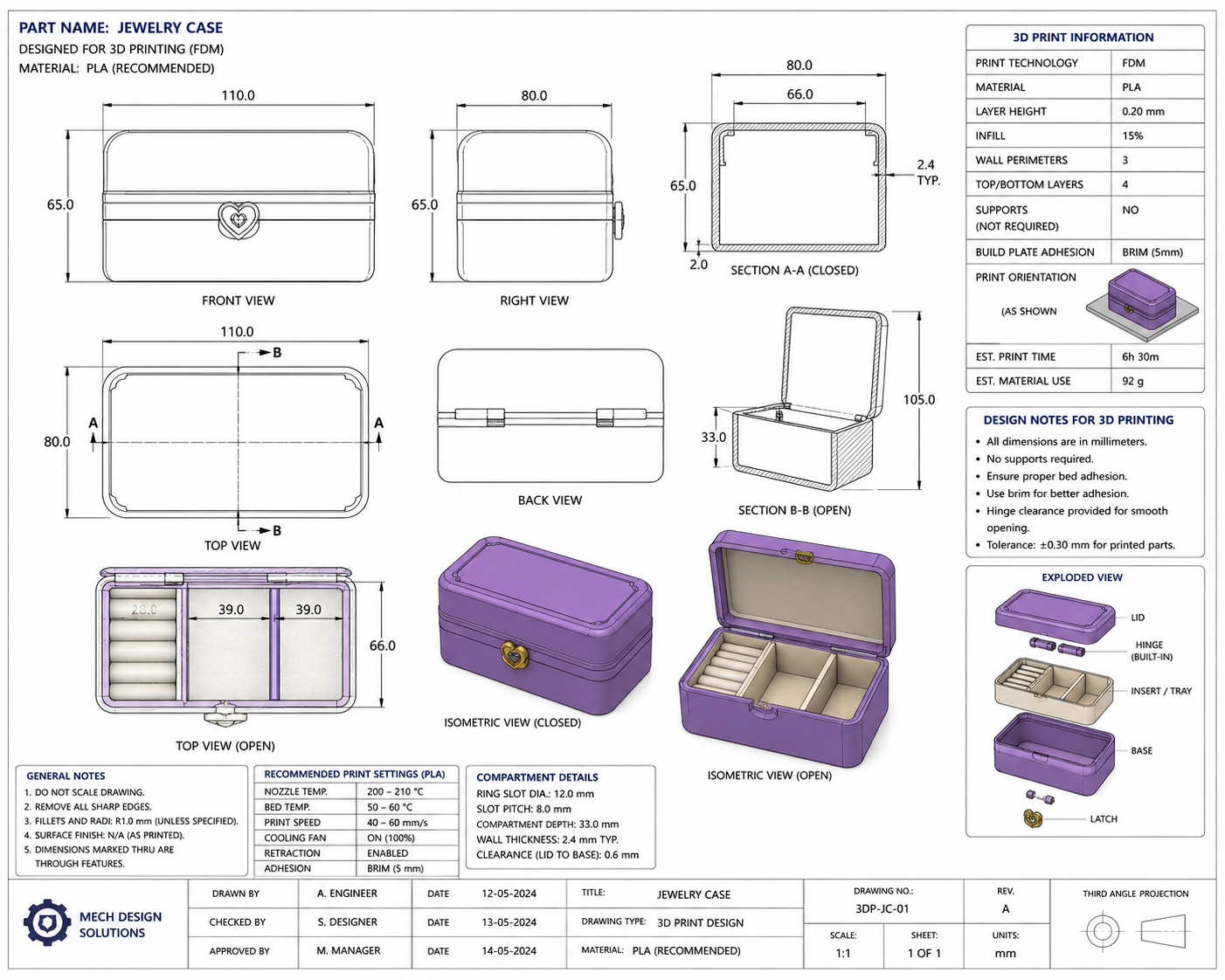

Print-Ready Geometry
Parts are designed with print constraints in mind so samples are easier to produce and more useful for testing.

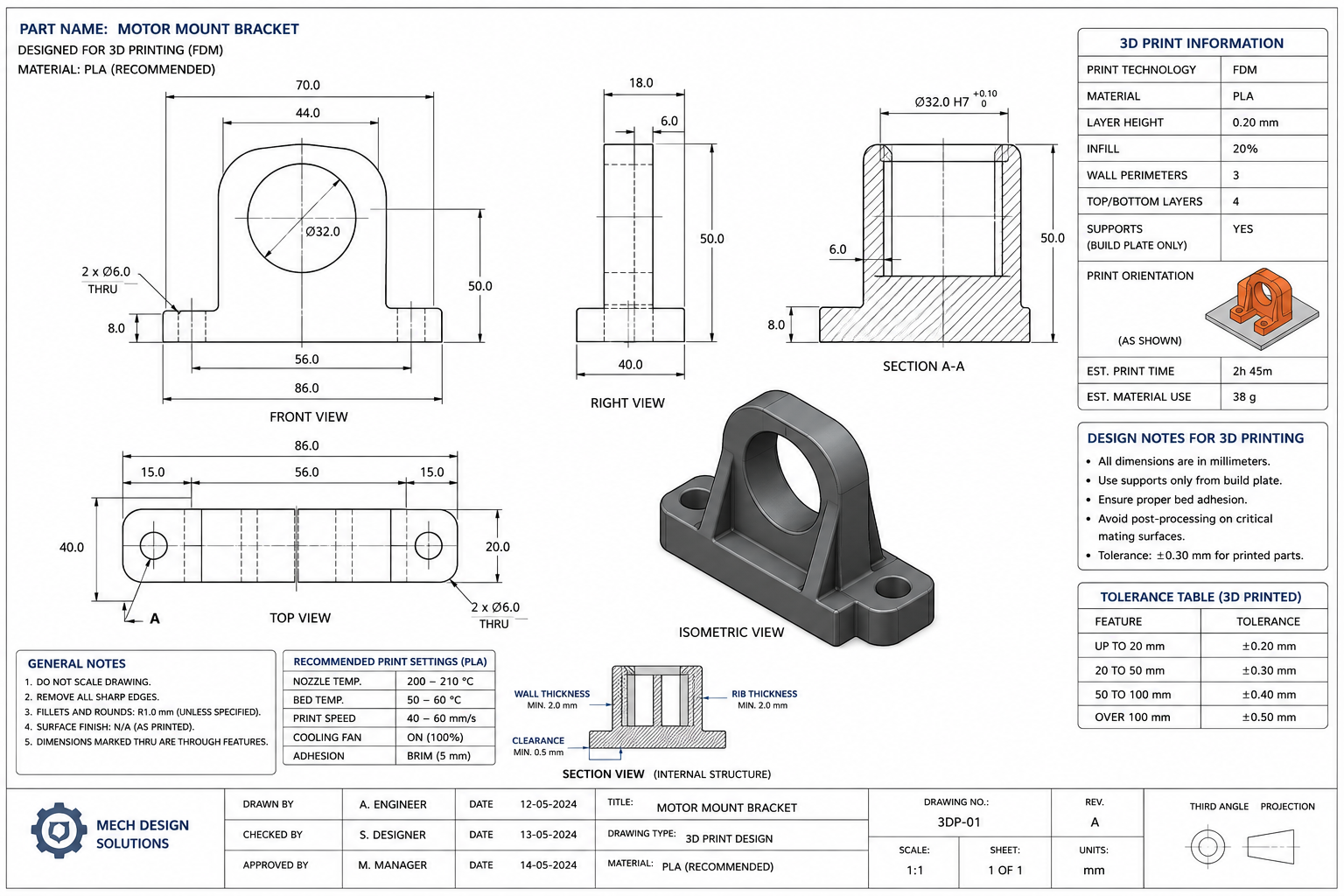

Prototype Fit Checks
Printed samples help validate fit, ergonomics, mounting points, and assembly behavior before production.
Functional Part Development
Jigs, fixtures, holders, and trial parts can be refined quickly through short design and print cycles.
